How To Choose The Right Rubber Materials?
We can customer all rubber materials from the product development to the material selection.
The items should be considered before you purchase:
1
Ambient temperature: from the maximum to minimum temperature.
2
Contact material: Grease, liquid, gas or chemical.
3
Work status: The rubber function and lifetime will be influence by the stretch, compression and dynamic/static state.
4
Design consideration: Product production/assembly and responses.
5
Product standard: In compliance with international standards (AS568, JIS B 2401 and so on).
6
Cost consideration: The production costs are different for all rubber materials, which should be selected to meet the benefits.
7
Acceptance examination: Define the acceptance target, and produce according to the sample.

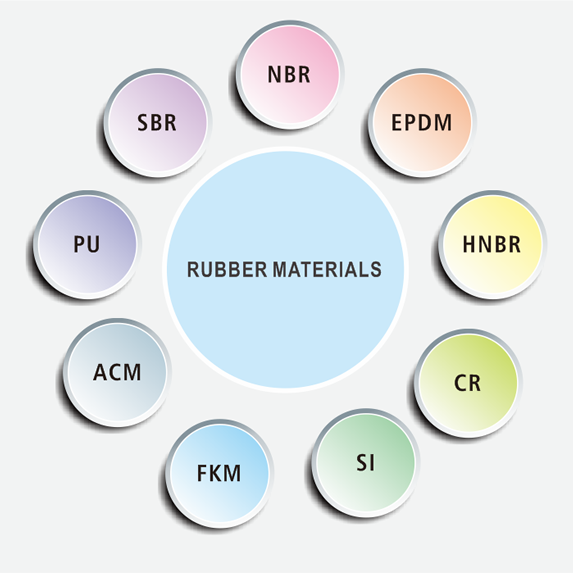

Rubber Materials
NBR(Nitrile Butadiene Rubber)
Rubber materials with grease resistance, suitable for circulating oil and lubricant.
Good compression set and wear resistance.
Applicable temperature: -30
o
C to 100
o
C.
Disadvantages: Poor climate and ozone resistance.
EPDM(Ethylene Propylene Rubber)
Good hydrophile, climate and ozone resistance.
Not suitable for the working environment in contact of grease (such as fuel oil, mineral oil and grease).
Applicable temperature: -40
o
C to 130
o
C.
Disadvantages: Poor compression set and wear resistance.
HNBR(Hydrogenated Nitrile Butadiene Rubber)
Suitable for R134A components.
Good grease and low-temperature resistance.
Applicable temperature: -25
o
C to 150
o
C.
CR(Chloroprene Rubber, Neoprene)
Suitable for jackets.
Good climate, grease and ozone resistance.
Applicable temperature: -45
o
C to 100
o
C.
Disadvantages: Poor low-temperature resistance.
SI(Silicone)
Good thermal, climate and temperature performance, waterproof and elasticity.
Applicable temperature: -50
o
C to 200
o
C.
Disadvantages: Poor tensile strength and peel strength, not suitable for the working environment in contact of grease.
FKM(Fluorocarbon Rubber)
Usually used one automobile industry, chemical process, aerospace and
semiconductor industries.
Good ozone, high-temperature, grease (except for ketone and ester) and
chemical resistance.
Applied in the dynamic state, where the most applicable temperature is
between -15
o
C and 200
o
C.
Disadvantages: Poor low-temperature resistance.
ACM
Widely applied for engine components, and mostly used for the oil system in
automatic transmission.
Good ozone and high-temperature resistance.
Operating temperature: -10
o
C to 160
o
C.
Disadvantages: Poor elasticity, compression set and low-temperature resistance.
PU(Polyurethane Rubber)
Good mechanical property, high elasticity and wear durability.
Good aging, ozone and grease resistance.
Operating temperature: -40
o
C to 100
o
C.
Disadvantages: Poor performance of fire retardation, quick combustion and
generation of more toxic gas when burning PU.
SBR(Styrene butadiene Rubber)
Mainly applied for tire industry, shoe soles, sporting appliances and conveyors.
Wear/aging resistance, waterproof, non-deforming in high hardness.
Operating temperature: -30
o
C to 70
o
C.
Disadvantages: no acid, ozone and grease resistance.

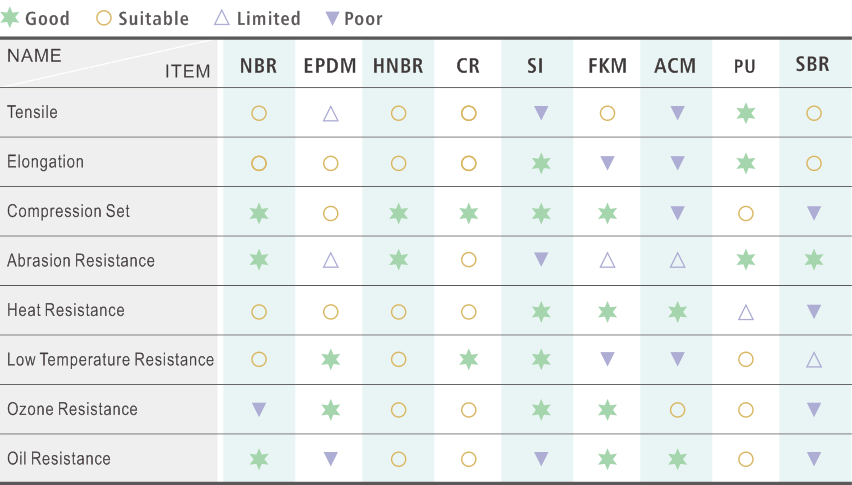

Rubber Materials Comparison of Physical Properties
